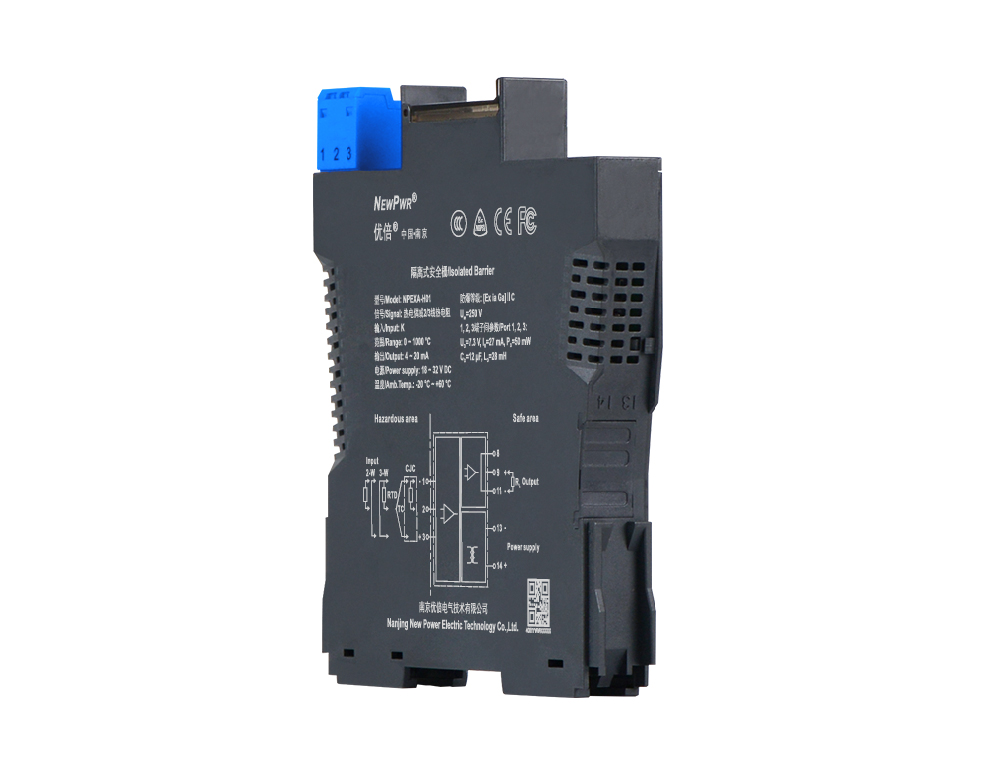

Supply

Power supply

18 ~ 32 V DC

Input

Input signal	K, E, S, B, J, T, R, N, etc. Pt100, Cu100, Cu50, BA1, BA2, etc.
Line resistance	≤ 20 Ω per line (RTD)

Output

Output signal	4 ~ 20 mA
Load resistance	RL ≤ 500 Ω

Transfer characterisics

Conversion accuracy-K	-200 ℃ ~ +1372 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-E	-100 ℃ ~ +1000 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-J	-100 ℃ ~ +1200 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-N	-200 ℃ ~ +1300 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-S	-50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-R	-50 ℃ ~ +1768 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-T	-20 ℃ ~ +400 ℃/＜300 ℃，±0.3 ℃/≥300 ℃，±0.1 %F.S.
Conversion accuracy-B	+400 ℃ ~ +1820 ℃/＜500 ℃，±0.5 ℃/≥500 ℃，±0.1 %F.S.
Conversion accuracy-Pt100	-200 ℃ ~ +850 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.
Conversion accuracy-Cu50	-50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.
Conversion accuracy-Cu100	-50 ℃ ~ +150 ℃/＜100 ℃，±0.1 ℃/≥100 ℃，±0.1 %F.S.
Temperature drift	0.01%F.S./℃

General parameters

Compensation accuracy	1°C (Temperature compensation range: -20°C ~ +60°C)
Response time	≤ 1 s
Power dissipation	1.0 W

EMC data

Electromagnetic compatibility	IEC 61326-3-1
Dielectric strength	≥ 2500V AC (intrinsically safe side / non-intrinsically safe side); ≥ 500V AC (Power supply /non-intrinsically safe side)
Insulation resistance	≥ 100 MΩ (Input /Output/Power supply)

Operating conditions

Operation temperature	-20 ℃ ~ +60 ℃
Storage temperature	-40 ℃ ~ +80 ℃
Suitable location	Mounting in safe area, and connected to the intrinsic safety apparatus in hazardous area zone 0, zone 1, zone 2, ⅡA, ⅡB, ⅡC, T4 ~ T6

State

Output states

Whatever input fault status (except breakage), the output follows the input within measuring range. And the maximum value would not exceed the 110% of the upper limit of the measuring range.

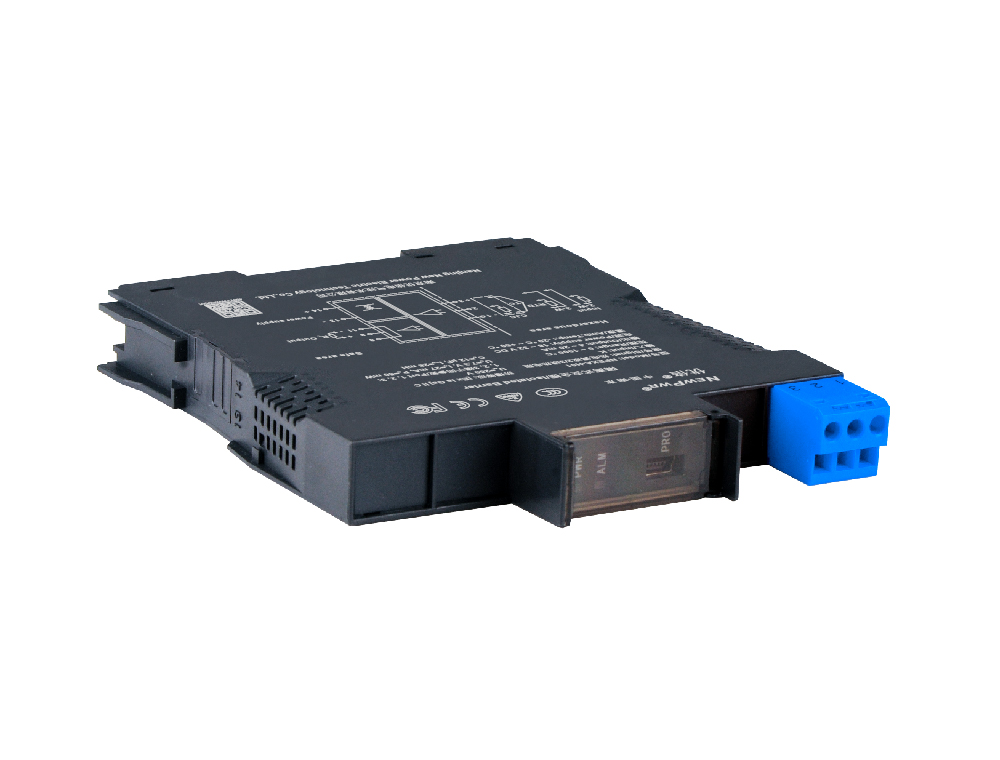

Mechanical specifications

Connection method	Screw connection
Dimension	15.8mm (W) × 121.6mm (H) × 104.8mm (D)

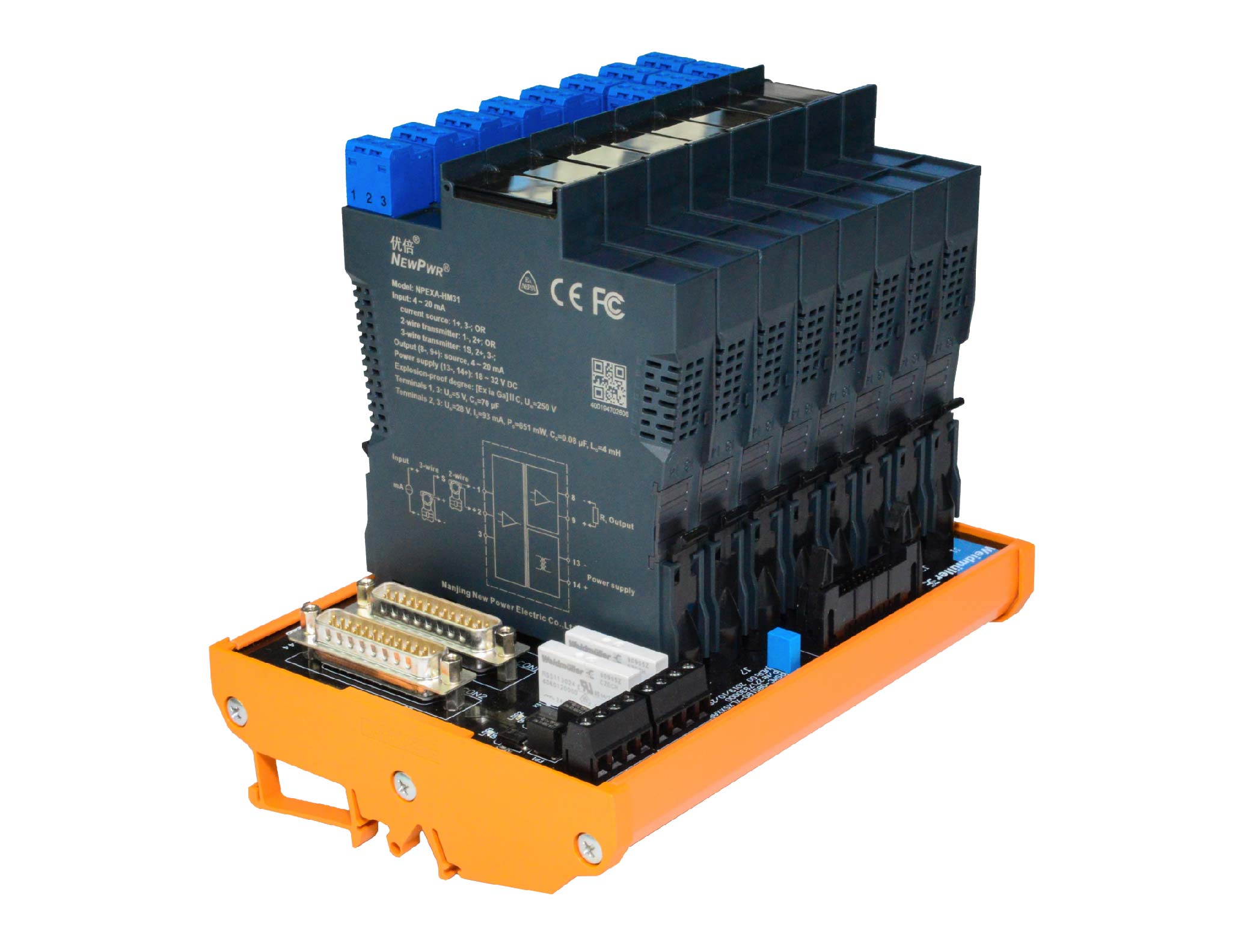

Mounting type	DIN35 mm

Certified data

Product approvals	NEPSI, CE, FCC, CCC
Ex marking	[Ex ia Ga]ⅡC
Um	250 V
Uo	7.3 V (Terminals 1, 2, 3)
Io	27 mA (Terminals 1, 2, 3)
Po	50 mW (Terminals 1, 2, 3)
Co	12 μF (Terminals 1, 2, 3)
Lo	28 mH (Terminals 1, 2, 3)
